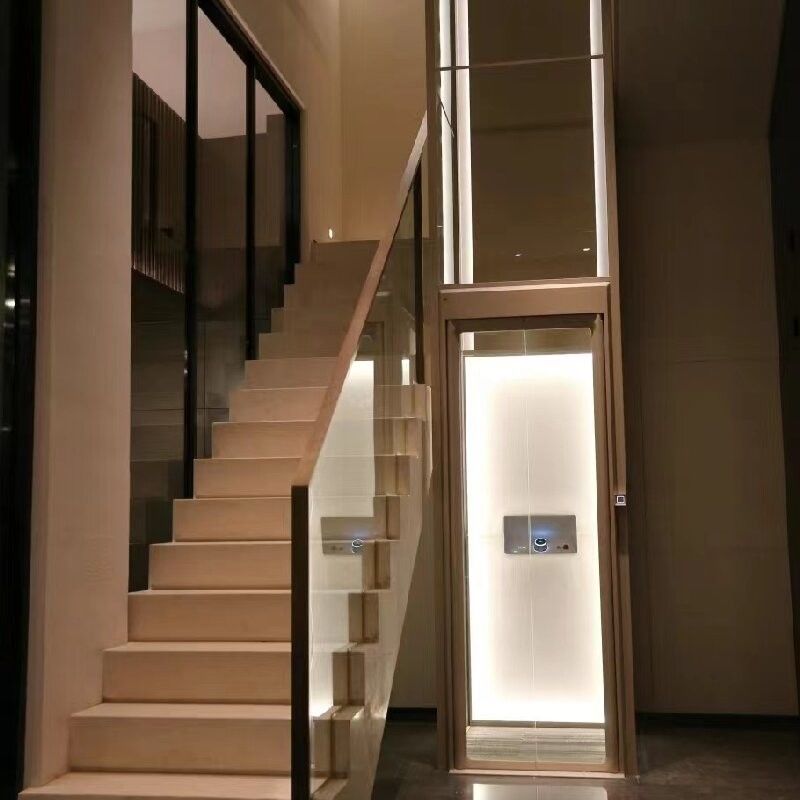

Pitless 4.7 kW Hydraulic Home Elevator (MRL Residential Lift)
Product Details:
| Place of Origin: | China |
| Brand Name: | YIMEISITE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 4,000-10,000 per set |
| Packaging Details: | Export non-fumigation wood box |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Large Cylinders: | 2.9 Meter Length | Pit Depth: | 0 M |
|---|---|---|---|
| Cabin: | 304# Stainless Steel/aluminium Alloy | Warranty: | 1 Year |
| Motor: | 4.7 Kw | Number Of Stops: | 5 |
| Control System: | Microprocessor | Floor: | Deck Floor |
| Highlight: | 4.7 kw hydraulic machine room less elevator,microprocessor hydraulic lift for house,microprocessor hydraulic machine room less elevator |
||
Product Description
Product Overview
This compact hydraulic home elevator uses a 0 m pit depth and a machine-room-less design, making it a strong fit for villas, duplexes, and retrofit projects. The 4.7 kW power unit and microprocessor control provide smooth and quiet travel up to 14.5 m across five stops. Optional sightseeing glass cabins and 304 stainless steel finishes support a modern look for residential and light commercial use.
Key Benefits
- Zero pit depth so no excavation is needed, ideal for existing homes and deck floors
- Machine-room-less layout saves space and simplifies installation
- 4.7 kW hydraulic drive with microprocessor control for stable and quiet performance
- Stainless steel or aluminium alloy sightseeing cabin options for a premium look
- 3 m overhead clearance and up to five stops suit most multi storey homes
- Runs on a single phase 220 V, 50 Hz power supply which keeps wiring simple
- Automatic doors and an emergency stop button improve daily safety
- Cost effective solution for new home lifts or replacing older residential elevators
Key Specifications
| Feature | Value |
|---|---|
| Product type | Pitless hydraulic home elevator (MRL) |
| Category | Hydraulic home lift |
| Max travel height | 14.5 m up to 5 floors |
| Pit depth | 0 m |
| Overhead clearance | 3 m |
| Motor power | 4.7 kW |
| Power supply | 220 V, 50 Hz, single phase AC |
| Control system | Microprocessor based |
| Cylinders | Large hydraulic cylinders, 2.9 m length |
| Cabin material | 304 stainless steel or aluminium alloy |
| Floor | Deck floor installation |
| Door type | Automatic sliding |
| Safety features | Emergency stop button |
| Warranty | 1 year |
Typical Applications
- Home elevators and compact residential lifts for villas, townhouses, penthouses and small apartment buildings
- Retrofit elevator projects where pit and headroom are limited
- Glass home elevators for hotels, clinics, offices and boutique commercial spaces
Request a Quote
Share your shaft dimensions, number of floors and preferred cabin style to receive a detailed price quote. This includes equipment, delivery and installation along with available home lift options and timelines. Quotes are typically provided within 48 hours.
