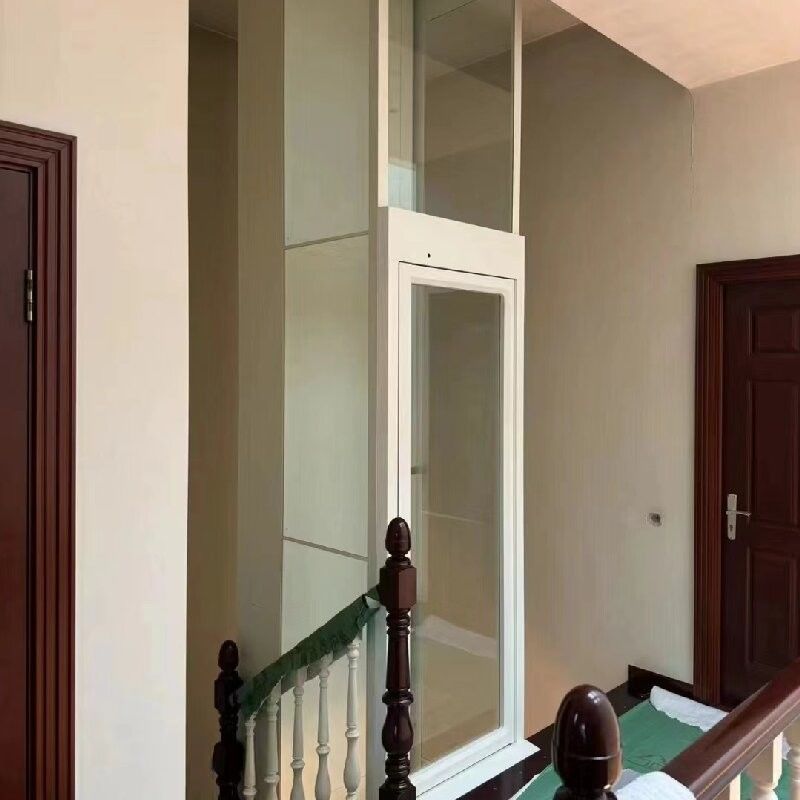

Single‑Phase Pitless Hydraulic Home Elevator with Automatic Doors – 5 Stops, 14.5 m
Product Details:
| Place of Origin: | China |
| Brand Name: | YIMEISITE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD 4,000-10,000 per set |
| Packaging Details: | Export Non-Fumigation Wood Box |
| Delivery Time: | 45 Working Days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 10 Sets Per Month |
|
Detail Information |
|||
| Warranty: | 1 Year | Safety Features: | Emergency Stop Button |
|---|---|---|---|
| Power Supply: | Single-phase AC | Door Type: | Automatic |
| Motor: | 4.7 Kw | Floor: | Deck Floor |
| Number Of Stops: | 5 Stops | Pit Depth: | 0 M |
| Highlight: | automatic pitless elevator,automatic pitless hydraulic elevator,5stop pitless elevator |
||
Product Description
Product Overview
This compact, pitless hydraulic home elevator is designed for multi-storey houses and villas needing a quiet, low-maintenance lift on standard single-phase AC. With a 4.7 kW motor, microprocessor control, and automatic doors, it delivers a smooth, fashion-home-elevator experience while fitting into low-headroom shafts.
Key Benefits
- 0 m pit depth so no excavation is required, ideal for retrofits and concrete deck floors
- Up to 14.5 m travel height and 5 stops suit most residential layouts
- 4.7 kW hydraulic unit and 2.9 m large cylinders provide smooth, low-noise lifting
- Automatic sliding doors and emergency stop button enhance safety and convenience
- 220 V, 50 Hz single-phase AC reduces residential elevator cost and wiring complexity
- Aluminium well shafts and 304 SS / aluminium-alloy cabin frames for strength and modern style
Key Specifications
| Feature | Value |
|---|---|
| Product type | Pitless hydraulic home elevator |
| Max travel height | 14.5 m (up to 5 floors) |
| Pit depth | 0 m |
| Overhead clearance | 3 m |
| Motor power | 4.7 kW |
| Cylinders | 2.9 m large hydraulic cylinders |
| Power supply | 220 V, 50 Hz, single-phase AC |
| Control system | Microprocessor-based |
| Door type | Automatic |
| Cabin material | 304# SS / aluminium-alloy frames |
| Safety features | Emergency stop button |
| Warranty | 1 year |
Typical Applications
- Compact home elevators and house elevator lifts in Vietnam, Malaysia, Philippines, Indonesia, Australia, Mexico, UAE, Myanmar, Singapore, Saudi Arabia, Egypt, Sudan, Thailand, Colombia, Israel, Qatar, Taiwan, Kazakhstan, Uzbekistan
- Retrofit elevator residential projects where pit depth and headroom are limited
- Fashion home elevators and sightseeing cabins in villas, offices, clinics, and boutiques
Request a Quote
Send your shaft dimensions and floor layout to receive a detailed compact home lift price, including equipment, delivery, and installation, within 48 hours.
