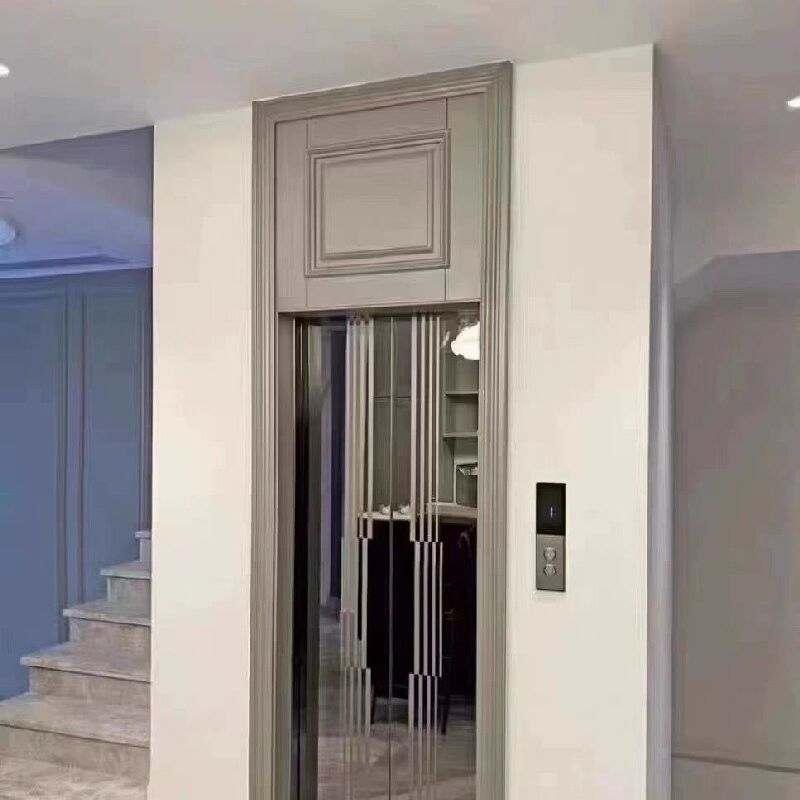

5-Stop Pitless Hydraulic Home Elevator with 2.9 m Cylinders
Product Details:
| Place of Origin: | China |
| Brand Name: | YIMEISITE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 4,000-10,000 per set |
| Packaging Details: | Export non-fumigation wood box |
| Delivery Time: | 40 working days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Warranty: | 1 Year | Max Height: | 14.5 M |
|---|---|---|---|
| Door Type: | Automatic | Power: | 220V, 50Hz, Single Phase |
| Motor: | 2.2 Kw | Pit Depth: | 0 M |
| Overhead Clearance: | 3 M | Large Cylinders: | 2.9 Meter Length |
| Highlight: | 5stop hydraulic elevators,5stop hydraulic elevator,2.2 kw hydraulic elevator |
||
Product Description
Product Overview
This compact hydraulic home elevator is designed for multi-storey houses and small buildings that need a quiet, low-maintenance lift without a deep pit. Large 2.9 m cylinders, a microprocessor controller, and automatic doors provide smooth and safe travel between up to five floors. Stainless-steel/aluminium cabin frames and aluminium well shafts create a modern look with long-term durability.
Key Specifications
| Feature | Value |
|---|---|
| Product type | Pitless hydraulic home elevator |
| Max travel height | 14.5 m (up to 5 stops) |
| Pit depth | 0 m |
| Overhead clearance | 3 m |
| Motor power | 2.2–4.7 kW (series options) |
| Cylinders | 2.9 m large hydraulic cylinders |
| Power supply | 220 V, 50 Hz, single-phase AC |
| Control system | Microprocessor-based |
| Cabin material | 304# SS / aluminium-alloy frames |
| Door type | Automatic sliding |
| Safety | Emergency stop button |
| Warranty | 1 year |
Applications
- Compact home elevators and house elevator lifts for villas, duplexes, and townhouses
- Retrofit elevator residential projects where pit depth is limited
- Fashion home elevators and sightseeing cabins for boutiques, clinics, and small offices
Request a Quote
Send your shaft dimensions and floor layout to receive a detailed compact home lift price, including equipment, delivery, and residential elevator installation, within 48 hours.
