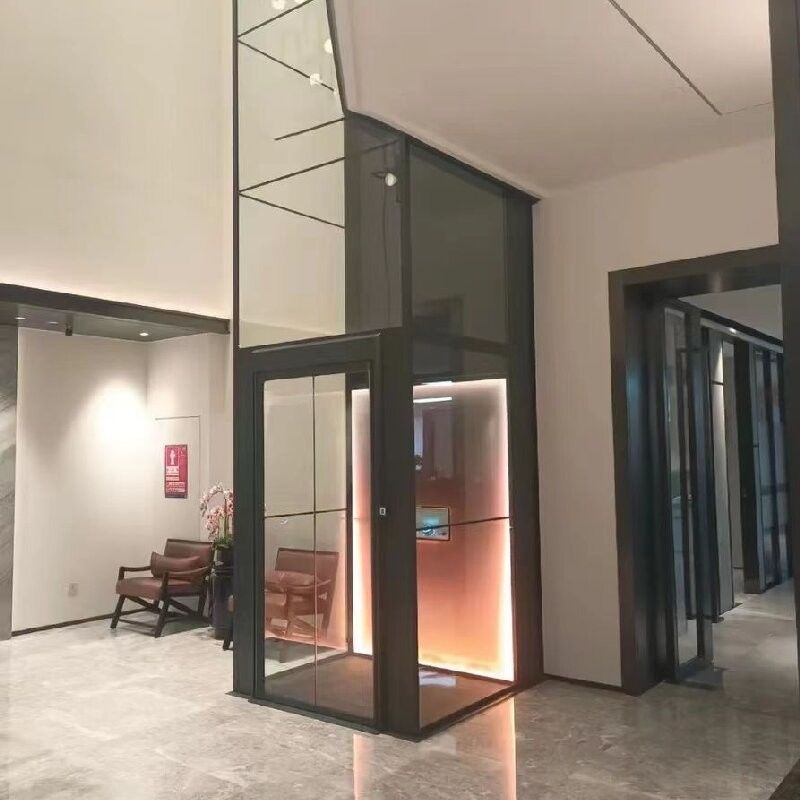

4.7 kW Microprocessor Hydraulic Home Elevator with Safety Features
Product Details:
| Place of Origin: | China |
| Brand Name: | YIMEISITE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 4,000-10,000 per set |
| Packaging Details: | Export non-fumigation wood box |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Power Supply: | Single-phase AC | Overhead Clearance: | 3 M |
|---|---|---|---|
| Max Height: | 14.5 M | Warranty: | 1 Year |
| Floor: | Deck Floor | Motor: | 4.7 Kw |
| Large Cylinders: | 2.9 Meter Length | Number Of Stops: | 5 |
| Highlight: | 4.7kw home elevator,4.7kw home hydraulic elevator,microprocessor home elevator |
||
Product Description
Product Overview
This pitless hydraulic home elevator is designed for multi-storey houses and villas that need a compact, quiet lift on standard single-phase power. A 4.7 kW hydraulic unit, 2.9 m large cylinders and microprocessor control deliver smooth, low-noise travel between up to five floors.
Why It’s a Good Choice
- 0 m pit depth – no excavation required, ideal for retrofit or deck-floor installation
- Maximum height 14.5 m and 5 stops suit most residential layouts
- 4.7 kW drive with 2.9 m large cylinders provides stable lifting for passengers and light goods
- Microprocessor control ensures accurate levelling and smooth start/stop operation
- 220 V, 50 Hz single-phase AC keeps residential elevator cost and wiring simple
- Emergency stop button improves safety for children, seniors and wheelchair users
Key Specifications
| Feature | Value |
|---|---|
| Product type | Pitless hydraulic home elevator |
| Max travel height | 14.5 m (up to 5 stops) |
| Pit depth | 0 m |
| Overhead clearance | 3 m |
| Motor power | 4.7 kW |
| Cylinders | 2.9 m large hydraulic cylinders |
| Power supply | 220 V, 50 Hz, single-phase AC |
| Control system | Microprocessor-based |
| Cabin material | 304# stainless steel / aluminium alloy |
| Door type | Automatic |
| Safety features | Emergency stop button |
| Warranty | 1 year |
Typical Applications
- Home elevators and house elevator lifts in Vietnam, Malaysia, Philippines, Indonesia, Australia, Mexico, UAE, Myanmar, Singapore, Saudi Arabia, Egypt, Sudan, Thailand, Colombia, Israel, Qatar, Taiwan, Kazakhstan, Uzbekistan
- Compact residential elevators for villas, duplexes, townhouses and penthouses
- Retrofit elevator residential projects where pit depth is limited
- Fashion home elevators or glass residential elevators with sightseeing cabin
Request a Quote
Send your shaft dimensions and floor layout to receive a detailed compact home lift price, including equipment, delivery and residential elevator installation, within 48 hours.
