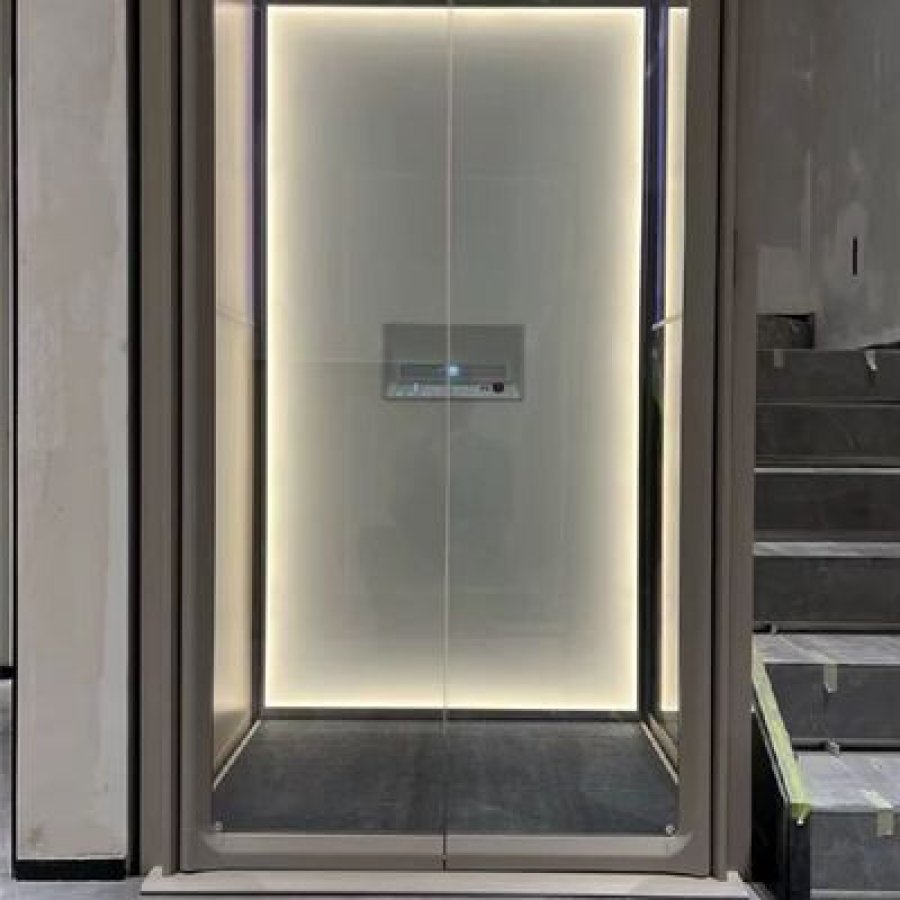

Deck-Floor Hydraulic Passenger Elevator – 3 m Overhead, Single-Phase AC

Product Details:

Brand Name

YIMEISITE

Place of Origin

China

Payment & Shipping Terms:

Minimum Order Quantity

1 set

Price

USD 4,000-10,000 per set

Payment Terms

T/T,L/C

Supply Ability

20 sets per month

Delivery Time

45 working days

Packaging Details

Export non-fumigation wood box

Get Best Price

Chat Now
Floor:Deck FloorLarge Cylinders:2.9 Meter Length
Pit Depth:0 MMax Height:14.5 M
Motor:4.7 KwPower Supply:Single-phase AC
Overhead Clearance:3mNumber Of Stops:5
Highlight:deck floor hydraulic passenger elevator,3m pitless hydraulic elevator,3m hydraulic passenger elevator

Product Description

Why This Lift Suits Modern Homes and Villas

  • Pit depth 0 m, true pitless hydraulic design makes retrofits and limited-space sites easy
  • 3 m overhead clearance fits most houses, decks and mezzanine floors
  • Single-phase 220 V, 50 Hz power keeps wiring simple and lowers residential elevator cost
  • 304 stainless steel or aluminium alloy cabin with optional sightseeing glass panels
  • Microprocessor control and 4.7 kW power unit deliver smooth, quiet rides
  • Emergency stop button and robust hydraulic safety gear ensure safe operation


Key Specifications

Feature Value
Lift type Pitless hydraulic home elevator
Max travel height 14.5 m (up to 5 stops)
Pit depth 0 m
Overhead clearance 3 m
Motor power 4.7 kW
Power supply 220 V, 50 Hz, single-phase AC
Control system Microprocessor based
Cabin material 304 stainless steel / aluminium alloy frames
Cylinders 2.9 m large hydraulic cylinders
Door type Automatic
Safety features Emergency stop button
Warranty 1 year

Typical Applications

  • Compact residential elevators in Vietnam, Malaysia, Philippines, Indonesia, Australia, Mexico, UAE, Myanmar, Singapore, Saudi Arabia, Egypt, Sudan, Thailand, Colombia, Israel, Qatar, Taiwan, Kazakhstan and Uzbekistan
  • Fashion home elevators and glass residential elevators on decks, terraces or atriums
  • Retrofit residential projects where pit excavation is not possible


Get Your Price Quote

Send your shaft dimensions and floor plan to receive a detailed compact home lift price including equipment, delivery and installation within 48 hours.
