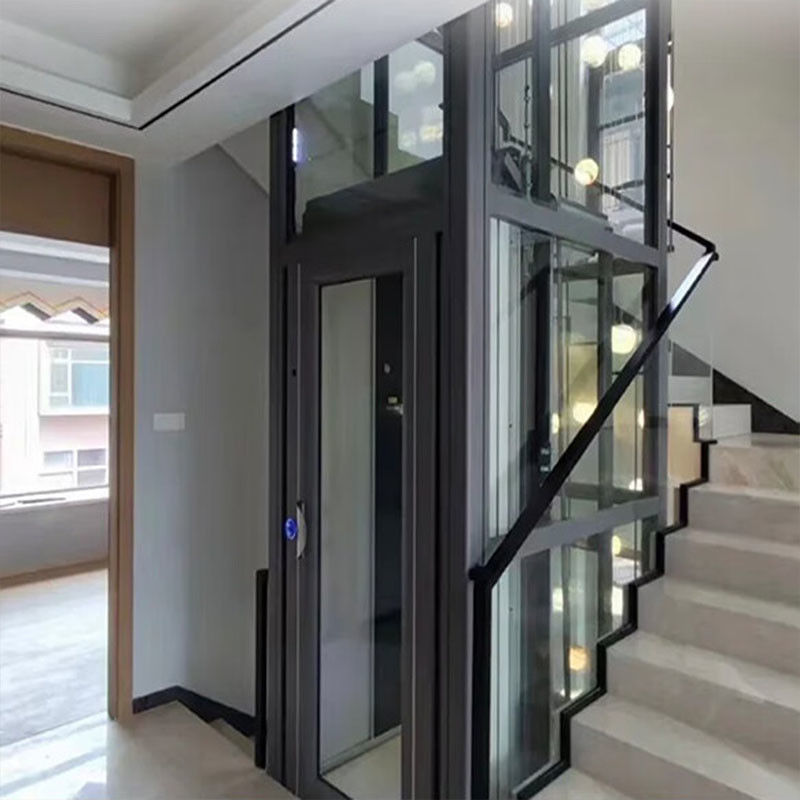

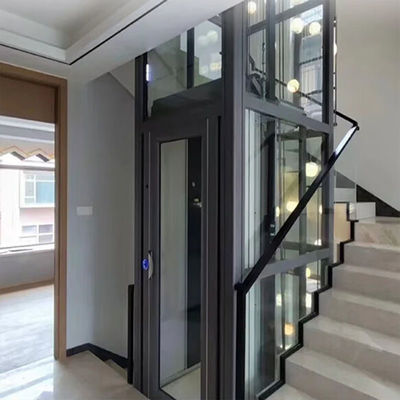

Silent Gearless Traction Elevator for Multi-Storey Homes
Product Details:
| Place of Origin: | China |
| Brand Name: | YIMEISITE |
| Certification: | ISO 9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD 10,000-20,000 per set |
| Packaging Details: | Export Non-Fumigation Wood Box |
| Delivery Time: | 45 Days |
| Payment Terms: | TT or LC at sight |
| Supply Ability: | 10 Sets Per Month |
|
Detail Information |
|||
| Control System: | Microprocessor-based Control System | Warranty: | 1 Year |
|---|---|---|---|
| Speed: | 0.6 M/S | Travel Height: | Up To 30 M |
| Safety Features: | Emergency Stop Button, Overload Protection, Safety Sensors | Drive System: | Gearless Traction |
| Noise Level: | Less Than 60 DB | Power Supply: | 220V/380V, 50Hz/60Hz |
| Highlight: | 30 Meters Residential Traction Elevator,Silent Electric Traction Elevator,30 Meters Electric Traction Elevator |
||
Product Description
Why This Lift Is the Smart Choice
- Gearless drive with VVVF control ensures whisper-quiet rides under 60 dB
- Capacity from 400 kg to 1000 kg and travel height up to 30 m (8–10 stops)
- Microprocessor control with emergency stop, overload protection and IR safety curtain
- Automatic sliding doors; steel or aluminium shafts install quickly with no machine room
- Works on 220 V or 380 V, 50/60 Hz and operates from 0 to 40 °C in any climate
- ISO 9001, CE, EAC certified and backed by a one-year warranty
Key Specifications
| Feature | Detail |
|---|---|
| Drive system | Gearless traction |
| Speed | 0.6 m/s (VVVF adjustable) |
| Load options | 400 / 630 / 800 / 1000 kg |
| Max travel height | 30 m |
| Doors | Automatic centre or side sliding |
| Noise level | < 60 dB |
| Power supply | 220 V / 380 V, 50/60 Hz |
| Operating temp | 0–40 °C |
| Safety devices | Emergency stop, overload, safety sensors |
| Warranty | 12 months |
Ideal Applications
- Villas and duplexes in Vietnam, Malaysia, Philippines, Indonesia, Australia, Mexico, UAE and Myanmar
- Retrofit elevator projects in Singapore, Thailand, Colombia, Israel, Qatar, Taiwan, Kazakhstan, Uzbekistan
- Glass residential elevators adding value to luxury homes and boutique hotels
Get Your Quote
Send your shaft dimensions to receive a detailed compact home-lift price including equipment, delivery and installation within 48 hours.
