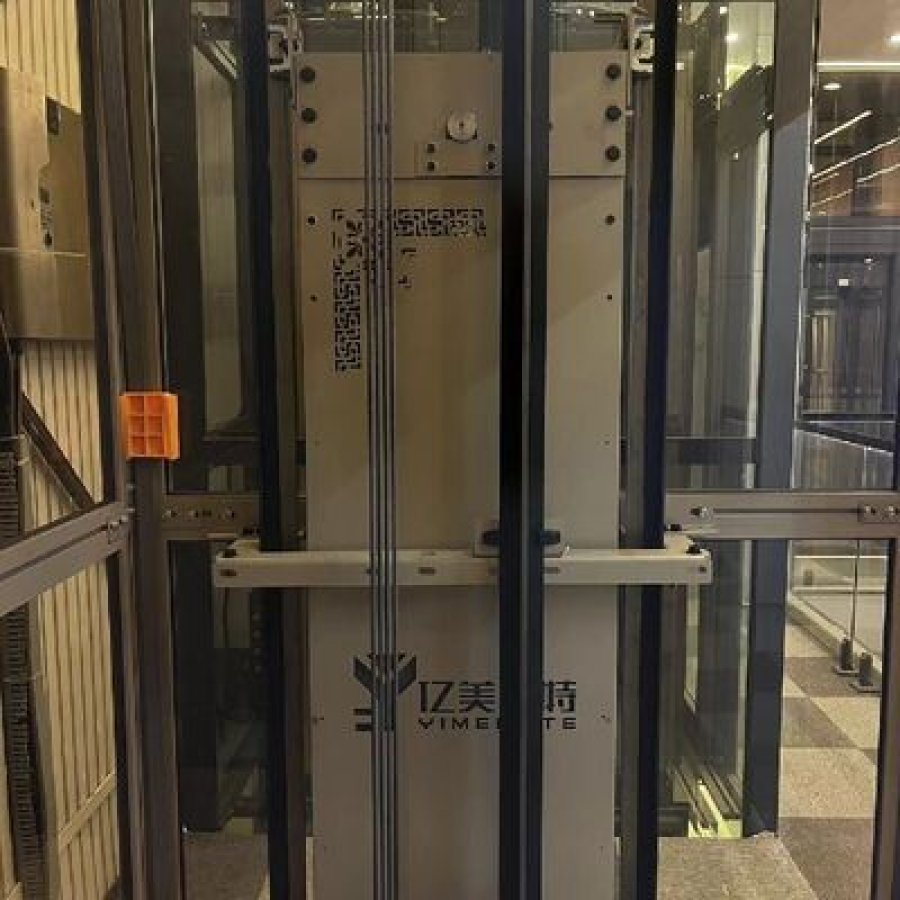

Silent Gearless Rope Traction Elevator for Residences – Up to 30 m

How a Rope-Driven Gearless Traction System Works

A traction lift moves the car by friction between steel ropes and a grooved sheave. The ropes pass over the sheave, one end is connected to the car, the other to a counterweight, and the machine turns the sheave to raise or lower the pair. The car hangs from the ropes, the counterweight balances most of its weight, and the machine handles the difference plus acceleration, friction and the rated load.

That description fits a rope traction home elevator as well as a large passenger lift. At residential scale the machine is smaller, the rope path is tighter, and the space left for inspection is usually the first thing the building takes away.

Four parts that carry the load

The load path has four parts, each with a different failure mode. The traction sheave transfers force through friction, so groove profile and rope condition matter together. The hoisting ropes carry the car and counterweight, so broken wires, wear and corrosion are the inspector's targets. The counterweight reduces machine effort but adds a second moving mass. The guide rails keep both masses in line; if they are out of plumb, the car and ropes pay for it.

The machine sits at the top of the shaft in a machine-room-less layout, or in a separate machine room above it. The controller, brake, governor and safety chain sit around that machine. The same rated load can be arranged with different rope counts, reeving and machine positions.

What gearless changes, and what it does not

A geared machine uses a reduction gearbox between motor and sheave; a gearless machine couples them directly. Removing the gearbox removes bearings, an oil sump and a source of whine, and usually makes the machine compact. It does not remove the brake, governor, rails, door interlocks or controller.

The motor and controller are matched by the factory. Ask for the data sheet rather than inferring the control type from the drive family. A quiet gearless traction lift is a system result, not a single component.

Why rope count and reeving are drawing items

Two lifts can share a rated load and speed and still use different rope counts. The count depends on the rope specification, sheave diameter, reeving and the manufacturer's design rules. A single rope count for every 30 m installation would be misleading.

Machine room or machine-room-less

A machine-room layout puts the machine in a separate space above the shaft, giving the technician room to stand, inspect and replace parts. A machine-room-less layout puts the machine at the top of the shaft, often inside a compact frame. It saves space but makes service access and heat management part of the shaft design.

Neither layout is automatically quieter. A lightweight machine room can become a drum if rigidly connected to the bedrooms. A machine-room-less layout can be quiet if the machine is isolated and the rails are aligned.

Rope vs Belt: What Changes in a Home

Rope and belt traction both use a sheave and a counterweight. The difference is the tension member and the hardware around it. A steel rope runs in a grooved sheave and is inspected wire by wire. A belt uses steel cords bonded into a polymer body and runs on a matched pulley. Neither is universally quieter, cheaper or easier to service.

Where a rope system has the advantage in a house

Rope traction is more common when travel is long, load is at the upper end, or the building already has a service company that works on rope lifts. Inspection is visible, replacement rope is a known commodity, and a local technician is likely to have the tools. On a 30 m run, those points matter more than a small machine-size difference.

Rope also lets the designer separate the machine from the bedrooms. A machine room or remote position can sit over a stair or service room, with the rope path through the shaft. That is often the cheapest acoustic decision.

Where a belt system can be the better fit

A belt system can fit when the shaft is extremely tight, headroom is fixed, or the supplier has a machine-room-less package built around a belt. It suits an owner who wants a compact machine and accepts a maker-specific service path. The belt, pulley and tensioner must be supported by the maintenance company.

Do not accept a blanket claim that one system is silent and the other noisy. Noise comes from the machine, tension member, rails, door and building. A belt can remove one high-frequency source and add another.

The question that decides it

Ask who will inspect the tension member, what they look for, what a replacement set costs, and how long the lift will be down. The clearer answer is the better choice.

Key Specifications at a Glance

The table below is the short data sheet for this 30 m home elevator. It is enough to check whether the machine belongs in the project, not enough to build the shaft. The approval drawing adds the shaft plan, pit and headroom, cabin and door clear dimensions, and fixings.

Reading the travel and speed figures together

A 30 m travel at 0.6 m/s is a minimum of 50 seconds of running time, because 30 divided by 0.6 is 50. That is not the time from pressing the button to stepping out. The car still has to accelerate, decelerate, level and cycle the door. Use 50 seconds as a lower bound for the running part, not as a journey promise.

The stop count is not fixed. At 3 m floor-to-floor, 30 m gives about ten stops; at 3.75 m it gives about eight. Measure every level and add the travel rather than dividing by an assumed storey height.

Reading the load figures

The four load options are not four versions of the same cabin. A 400 kg machine can use a smaller car; a 1000 kg machine needs a larger car, larger guide rails and a stronger structural interface. Load and car size are designed as a pair.

In a private house the load usually follows the intended use: a small car for two or three people, a larger car for a wheelchair, pram or luggage, and the top of the range for a large villa. Those are planning categories, not occupancy ratings; the limit belongs on the data plate.

Why there are no shaft dimensions in this table

Shaft width, depth, pit, headroom, cabin and door clear dimensions depend on the load, car size, door arrangement, guide-rail system and machine position. Select the load and door, measure the shaft, then let the factory return the clear dimensions.

Noise: What <60 dB Means in a Real House

The page copy describes this machine as operating under 60 dB. That figure is useful, not a promise about a bedroom. Sound pressure level depends on meter position, background noise, machine mounting and shaft construction. A dB number without a measurement position cannot be compared with another supplier's.

The practical question is narrower: will the lift be audible in the rooms that matter, at the times that matter? Answering it means looking at three transmission paths and at the service condition of the parts that generate the sound.

Three paths, not one

Why 60 dB is not a room guarantee

The decibel scale is logarithmic. A 3 dB rise is about twice the sound energy, and a 10 dB rise is roughly perceived as twice as loud. A small change in the machine or mounting can be noticeable in the room; a large catalogue change can be small at the pillow.

Background noise changes the result. A bedroom at night may be around 30 dB, so a 45 dB lift is clearly audible; the same lift in a kitchen with a refrigerator and range hood may be masked. The test must state background level, distance and operating condition.

Machine position is the biggest lever

If the machine sits directly over a bedroom, the ceiling becomes part of the sound path. Moving it over a stair, bathroom, corridor or service room can do more than any acoustic lining applied after the shaft is closed. A machine-room layout gives more separation options; a machine-room-less layout saves space but puts the machine at the top of the shaft.

Where the machine must sit near a quiet room, separate the base from the structure, seal the enclosure and avoid rigid connections. A quiet gearless traction lift is created by mounting detail and rail alignment, not by a brochure word.

Rope and sheave noise

The rope-sheave contact is a normal source of running sound. It becomes a problem when the groove is worn, the ropes are unevenly tensioned, the ropes are dry or contaminated, or the machine is misaligned. Those conditions also accelerate rope wear, so a noise complaint and a maintenance issue are often the same finding. At service, check the groove, tension, rope condition and alignment together.

Door noise

Automatic sliding doors add their own sound: the track, rollers, sill and closing action. Most of it is mechanical and adjustable. A door that scrapes at one landing may have a sill that is not level with the car floor, a track out of line, or a worn roller. Those are handover items.

What to ask for before you compare dB figures

• Measurement position: machine, shaft wall, bedroom wall or bed head.
• Background level and whether the building was occupied.
• Operating condition: load, direction, acceleration and door cycle.
• Test standard, and whether the report covers the same machine and mounting.
• Whether the figure is sound pressure at the stated position or sound power for the machine.
• What the supplier will do if the installed result is higher: measure, isolate, adjust or replace.

Power, Doors and Shaft Conditions

Three site conditions decide whether the selected machine can be installed as drawn: the electrical supply, the door arrangement and the shaft construction. Each one changes the machine package, the approval drawing or the builder's scope, and each is cheaper to settle before the order.

Supply: 220 V or 380 V

The page lists 220 V or 380 V, 50/60 Hz. That is a range of configurations, not a statement that the same machine can be connected either way. Motor, controller and door operator are matched to the supply; give the electrician the quoted values before the cable is sized.

A dedicated circuit is normal. The designer needs full-load current, starting method, breaker curve and earth arrangement. Do not size the cable from motor kW alone. On a single-phase supply, measure available capacity under normal household load.

Doors: automatic sliding

As a gearless lift with automatic doors, the package includes a landing door and a car door. Clear opening, height, sill detail and opening direction are set on the drawing. The landing door is also a safety device. Ask for the clear opening in millimetres; a door that looks wide on the catalogue can be too narrow after frame and finish.

Shaft: steel, aluminium or masonry

The page copy describes a steel or aluminium well shaft. These differ in fixings, tolerances and acoustics. A steel frame can be erected quickly and isolated; an aluminium frame is lighter and can suit glass. A masonry shaft is project-specific and must be checked for plumb and fixings.

Machine room or machine-room-less

A machine-room-less layout saves the separate room but puts the machine close to the top floor and makes service access part of the shaft design. A separate machine room gives more space and can move noise away, but costs volume and needs ventilation.

Decide with the top-floor plan in front of you. If the space above the shaft is a bedroom, a compact unit may be wrong. If it is a stair or service room, the same unit may be quietest because separation already exists.

Door and clearance plan

The plan view is where most retrofit surprises appear. The car must fit the shaft, the door must open without fouling a wall or stair, and the sill must meet the car floor.

Condition cards: what each site needs

Safety, Inspection and Acceptance

A residential lift is safe when the safety chain is complete, not when one component has a good label. The chain runs from the landing door through the interlock, controller, brake, governor and car safety gear to the buffers. Each link is designed, installed and tested as one system.

What the page lists

The specification block lists an emergency stop button, overload protection and safety sensors. Those are starting points, not the whole chain. The stop lets the passenger halt the car; the overload device prevents a start beyond the rating; the sensors detect an obstruction. None replaces the interlock, governor or brake.

Rest of the chain

The approval drawing and handover checklist should show the door interlocks at every landing, top and bottom limit switches, the overspeed governor and safety gear, the machine brake, the buffers and the emergency communication or alarm if specified. An automatic rescue device, if specified, is a separate item and should not be assumed because the lift has a controller.

Ask for the safety chain as a sequence, not a list of parts. A sequence makes clear what happens when a landing door opens, the car passes the top limit, the supply fails or the emergency stop is pressed.

Certification: ask for the certificate set, not a badge

The page data does not list a certification in the specification table, so this page does not claim one. Certification is market- and scope-specific: ISO 9001 covers a management system, while CE or EAC covers a defined product and requirements. One does not imply the other.

If certification matters, ask for the number, issuing body, product scope, standard and validity date. Check that it names the product family and manufacturing site. A certificate for a different model, or one that expired, is not evidence for this machine.

Acceptance tests before handover

The tests should be witnessed and recorded. The exact list depends on the local code and the approved design, but the following items are the minimum a buyer should see in the handover record.

What the handover file should contain

A useful handover file has six parts: as-built drawing, installation and maintenance manual, test record, certificate set, warranty terms with exclusions, and spare-parts list. If any part is missing, the file is incomplete. Ask for final dimensions at every landing and the controller location.

Installation Sequence and Site Readiness

The installation starts before the crate arrives. The survey fixes dimensions, the approval drawing fixes interfaces, and the builder prepares the shaft and openings to match. Done in that order, the mechanical work is predictable. Reversed, the installer spends the first week correcting errors that were cheaper to fix on paper.

The sequence

1. Survey and measure

   Record every floor-to-floor height, shaft clear size, landing opening, headroom, machine position, access route and supply. Take photographs with a tape in frame. The survey is the input to the drawing, not a formality.

2. Layout and approval

   The factory returns the shaft plan, machine position, fixing details, door clear opening and building loads. The builder, electrician and owner review it together. Changes before approval are design; changes after approval are change orders.

3. Shaft and landing preparation

   The shaft is brought to plumb, the openings are set to the drawing, the machine base is prepared, and the landing sills are set. The electrical route and lighting are installed.

4. Delivery and storage

   A package arrives in an export non-fumigation wood box. Check the crate, packing list and goods before signing. Store the parts dry and out of the traffic path. Do not open the controller until the space is clean and the power is ready.

5. Machine, guide rails and ropes

   Guide rails are set and aligned, the machine is fixed and isolated, and the ropes are installed and tensioned. Check the rope path, sheave alignment and counterweight clearance before moving the car.

6. Car, doors and electrical

   Car assembly, door hanging and controller wiring follow. Align the door track, sill and car floor at every landing. Check insulation, earth continuity and supply rotation before the first run.

7. Test and commissioning

   Running tests cover empty and loaded travel, leveling, door cycle, safety chain, noise and vibration. Record measured values, not just a tick.

8. Handover and training

   Handover gives the owner the as-built drawing, manual, test record, warranty terms and spare-parts list. The maintenance provider is introduced, emergency procedures are explained, and the first service interval is agreed.

Site readiness: three things the builder controls

Common delays, and how to avoid them

• Shaft is out of plumb or the landing openings are not aligned with the drawing.
• Supply is not at the site, or the voltage does not match the selected machine.
• Machine position is blocked by a beam, a duct or a finished roof.
• Door sill is set before the finished floor level is fixed.
• Crate is stored in a damp space or the controller is opened before the area is clean.
• Owner changes the door or cabin finish after the drawing is approved.

Most of these are interface failures between the lift package and the building, not lift failures. A pre-installation meeting with the builder, electrician and installer is the cheapest way to find them while they are still drawings.

Lead time

The commercial table states 45 working days. That is production lead time, not a promise that the lift will run 45 working days after the order. Shipping, customs, site readiness and inspection sit outside it.

Maintenance: Rope Inspection and Replacement Logic

A traction lift has more moving parts than a hydraulic lift, most above the car. That is a reason to design service access before the ceiling is closed and agree who will inspect the machine after warranty. Gearless traction elevator maintenance is mostly looking, measuring and adjusting; rope inspection deserves the most attention.

What the service visit covers

Home elevator rope inspection: what the technician looks for

A rope inspection is not a glance from the landing. It examines the full rope run, sheave contact, rope ends and governor rope. The usual findings are broken wires, wear, corrosion, a birdcage or kink, unequal tension, a worn rope end or a groove that no longer matches the rope. The method and rejection criteria come from the lift maker's manual and local inspection rules.

Tension matters because the load is shared. If one rope carries more, it wears faster and the set reaches its limit sooner. Check equalisation after a replacement or major adjustment.

Replacement logic, not a calendar

Rope replacement is condition-based. No single calendar interval fits every house, because duty, load, sheave condition, humidity, temperature and maintenance quality change the result. A weekend house and a full-time family home do not accumulate the same cycles.

Inspect against the maker's criteria, record the measurements, and replace when they are met. Use the specified rope construction and diameter, match the set, check the sheave and re-tension. Do not mix old and new ropes unless the maker allows it.

Warranty and the service contract

The page states a 12-month warranty. Read the terms with the quotation, because the period alone does not say what is covered, excluded, who pays for travel or which parts are wear items. Ropes, door rollers and finish damage are often treated differently from a controller failure. Ask for the exclusions in writing.

After the warranty, the owner needs a provider who can inspect the machine, ropes, brake and doors and can get spare parts. Ask for the recommended spare-parts list and the lead time for a rope set, door roller and sensor. A sound lift waiting three months for a part is still out of service.

Service access is a design decision

The technician needs to reach the machine, see the rope run, inspect the brake and test the governor. In a machine-room-less layout that access is at the top of the shaft and has to be designed into the building. In a machine room, the space needs lighting, a safe platform and ventilation. A hatch in a finished ceiling with no standing space turns a routine visit into a dismantling job.

Questions Buyers Ask Before Ordering

These are the questions that come up in the first technical review. The answers are short because the detail belongs in the drawing and the quotation, not in a sales paragraph.

Product Gallery

The gallery collects thirteen product photographs from this range. They show different cabin treatments, door arrangements and machine-room-less configurations; they are not a promise that every finish combination is available at every load. Use them to shortlist a direction, then confirm the selected cabin, door and finish on the approval drawing.

Thirteen product photographs from the current gallery.
