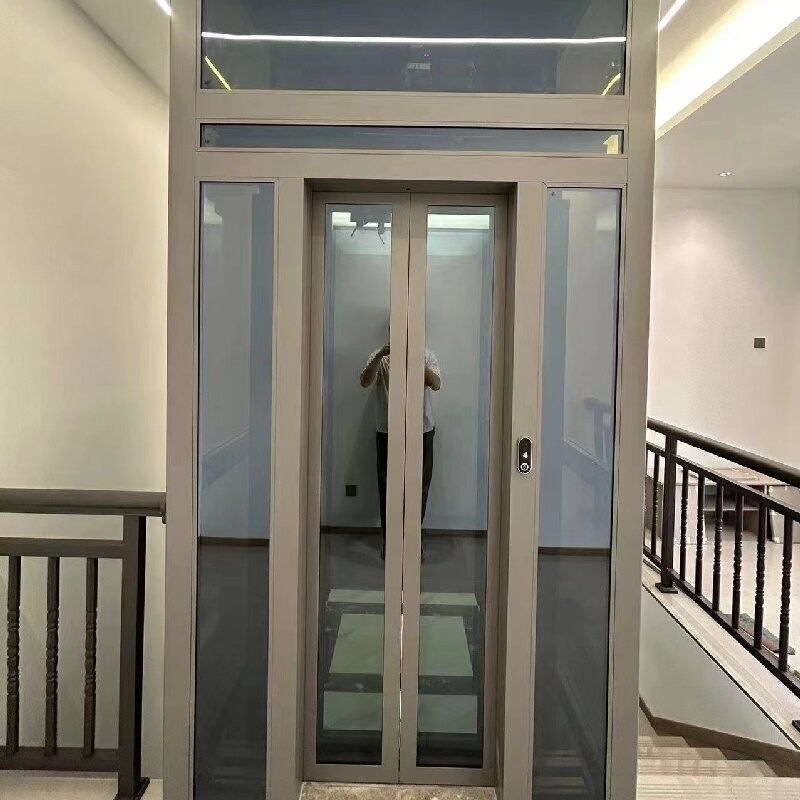

Ultra-Quiet Gearless Traction Home Elevator – Up to 30 m Travel
Product Details:
| Place of Origin: | China |
| Brand Name: | YIMEISITE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 10,000-20,000 per set |
| Packaging Details: | Export non-fumigation wood box. |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 10 sets |
|
Detail Information |
|||
| Speed: | 0.6 M/s | Noise Level: | Less Than 60 DB |
|---|---|---|---|
| Warranty: | 1 Year | Operating Temperature: | 0-40°C |
| Drive System: | Gearless Traction | Power Supply: | 220V/380V, 50Hz/60Hz |
| Safety Features: | Emergency Stop Button, Overload Protection, Safety Sensors | Door System: | Automatic Sliding Doors |
| Highlight: | gearless villa elevator lift,villa traction gearless elevator,220v villa elevator lift |
||
Product Description
Why Choose This Lift
- • Gearless VVVF drive keeps noise below 60 dB for true home comfort
- • Microprocessor control with emergency stop, overload sensors and safety curtain
- • Auto-sliding doors available in steel, glass or wood veneer, with through, side or bi-parting layouts
- • Modular steel or aluminum shaft allows quick retrofit installation with minimal civil work
- • Load range from 400 to 1000 kg suits villas, duplexes and boutique offices
- • One-year warranty, spare-parts availability and 24/7 remote diagnostics keep long-term operating costs low
Key Specifications
| Item | Value |
|---|---|
| Rated load | 400 / 630 / 800 / 1000 kg |
| Speed | 0.6 m/s (VVVF adjustable) |
| Max travel | up to 30 m (≈ 8–10 stops) |
| Noise level | < 60 dB |
| Drive & control | Gearless traction with microprocessor |
| Door system | Automatic center / side / through |
| Shaft structure | Steel or aluminum frame |
| Power supply | 220 V / 380 V, 50/60 Hz |
| Safety devices | Overspeed governor, dual brake, overload, light curtain |
| Certifications | ISO 9001, CE, EAC |
| Warranty | 1 year |
Design Options
- • Cabin finishes: stainless steel, powder-coated panels, timber veneer or panoramic glass
- • Lighting choices: star-top LED, RGB ambient strips or mirror ceiling panels
- • Car operating panel with touchscreen, braille and voice guidance
Typical Applications
- • Luxury villas in Vietnam, Malaysia, Indonesia, Australia, Mexico and the UAE
- • Retrofit elevator upgrades in Singapore, Thailand and Colombia
- • Energy-efficient glass residential elevators for penthouses or atriums
- • Quiet, durable lifts for hospitals, senior residences or boutique hotels
Global Delivery & Service
Turnkey design, shipping and installation through certified partners in all 17 target markets. Local teams manage permits, inspection and preventive maintenance contracts.
Request Your Quote
Send your floor plan and décor preferences to receive a detailed compact home-lift price covering equipment, delivery and installation within 48 hours.
